Complete Einstein’s Theories – A Breakthrough in Particle Physics

Osaka University researchers have demonstrated the relativistic contraction of an electric field generated by fast-moving charged particles, as predicted by Einstein’s theory, which could help improve particle and radiation physics research.

More than a century ago, one of the most famous modern physicists, Albert Einstein, proposed the groundbreaking theory of special relativity. Most of everything we know about the universe is based on this theory, however, part of it has not yet been proven experimentally. scholars who Osaka University The Institute of Laser Engineering used ultrafast photoelectric measurements for the first time to visualize the contraction of the electric field surrounding an electron beam traveling at near the speed of light and to demonstrate the generation process.

According to Einstein’s theory of special relativity, one must use a “Lorentz transform” that sums up the coordinates of space and time in order to accurately describe the motion of objects passing an observer at speeds approaching the speed of light. He was able to explain how these transformations led to self-consistent equations of electric and magnetic fields.

While the various effects of relativity have been proven many times with a very high degree of experimentation[{” attribute=””>accuracy, there are still parts of relativity that have yet to be revealed in experiments. Ironically, one of these is the contraction of the electric field, which is represented as a special relativity phenomenon in electromagnetism.

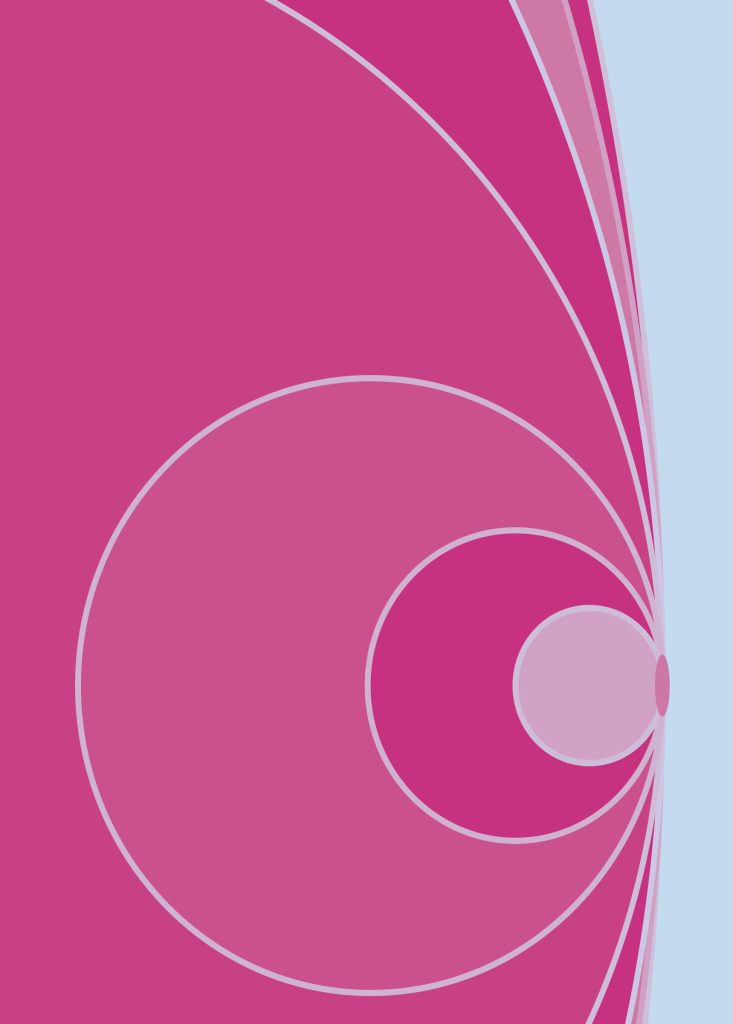

Illustration of the formation process of the planar electric field contraction that accompanies the propagation of a near-light-speed electron beam (shown as an ellipse in the figure). Credit: Masato Ota, Makoto Nakajima

Now, the research team at Osaka University has demonstrated this effect experimentally for the first time. They accomplished this feat by measuring the profile of the Coulomb field in space and time around a high-energy electron beam generated by a linear particle accelerator. Using ultrafast electro-optic sampling, they were able to record the electric field with extremely high temporal resolution.

It has been reported that the Lorentz transformations of time and space as well as those of energy and momentum were demonstrated by time dilation experiments and rest mass energy experiments, respectively. Here, the team looked at a similar relativistic effect called electric-field contraction, which corresponds to the Lorentz transformation of electromagnetic potentials.

“We visualized the contraction of an electric field around an electron beam propagating close to the speed of light,” says Professor Makoto Nakajima, the project leader. In addition, the team observed the process of electric-field contraction right after the electron beam passed through a metal boundary.

When developing the theory of relativity, it is said that Einstein used thought experiments to imagine what it would be like to ride on a wave of light. “There is something poetic about demonstrating the relativistic effect of electric fields more than 100 years after Einstein predicted it,” says Professor Nakajima. “Electric fields were a crucial element in the formation of the theory of relativity in the first place.”

This research, with observations matching closely to Einstein’s predictions of special relativity in electromagnetism, can serve as a platform for measurements of energetic particle beams and other experiments in high-energy physics.

Reference: “Ultrafast visualization of an electric field under the Lorentz transformation” by Masato Ota, Koichi Kan, Soichiro Komada, Youwei Wang, Verdad C. Agulto, Valynn Katrine Mag-usara, Yasunobu Arikawa, Makoto R. Asakawa, Youichi Sakawa, Tatsunosuke Matsui and Makoto Nakajima, 20 October 2022, Nature Physics.
DOI: 10.1038/s41567-022-01767-w

The study was funded by the Japan Society for the Promotion of Science and the NIFS Collaborative Research Program.
